Home Dell DSDPS-200

Dell DSDPS-200 Exam Practice Questions (P. 5)

  • Full Access (56 questions)
  • Six months of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #21
The volume in-use warning slider is visible only when which condition exists?
  1. A
    The volume is online.
  2. B
    The volume is thin provisioned.
  3. C
    The volume is set to read-write.
  4. D
    The volume spanshot reserve is set to 0%.

Correct Answer:
B
If a thin provisioned volume’s allocated space exceeds the "maximum in-use space" setting, the volume will go into an offline state
Note:
Thin provisioning settings controls whether the volume is thin-provisioned and, if so, the minimum and maximum volume reserve and the in-use space warning limit.
References: Dell EqualLogic Configuration Guide, page 17
https://support.equallogic.com/WorkArea/DownloadAsset.aspx?id=9831

Question #22
SupportAssist has been enabled for a PS Series group. The Activity Logs show that diagnostic data collection is successful. The SupportAssist upload fails consistently.
Which three items should be verified to fix this problem? (Choose three.)
  1. A
    The PS Series group has SSH enabled.
  2. B
    Single sign-on is enabled in the PS Series group settings for the SAN HQ server.
  3. C
    In SAN HQ SNMP notifications, "Send SNMP Notification" is enabled.
  4. D
    The SAN HQ Server has Internet access.
  5. E
    The SupportAssist Contact page lists the correct email address.
  6. F
    A firewall is NOT blocking SSH port 22 and HTTPS port 443.

Correct Answer:
ADF
A: You must manually enable these group management features:
SNMPConfigure a read-only SNMP community name in the Group Manager GUIs SNMP options. If you are already monitoring your group with SAN HQ, you do not need to do this.
SSHEnable SSH in the Group Manager GUIs Administration options. SSH is enabled by default.
D: If SupportAssist cannot complete an upload due to internet connectivity or server down situations, it defers the upload and attempts an upload at a later time.
F: Protocols and ports for standard SAN HQ functionality include:
SSH (22) Secure Socket Shell communication between the SAN HQ Server and PS Series array, and for the initial SupportAssist configuration.
HTTPS (443) SAN HQ Server communication to the Dell Support server for uploading Sup-portAssist data and weekly updates to local repository (including newly-support disks and hardware).
Note: SupportAssist is an optional component of SAN Headquarters that enables you to collect, and optionally upload, PS Series group configuration diagnostic data to Dell Support for analysis and diagnosis.
References:
http://fr.community.dell.com/forums_daide/stockage/w/wiki/596.dell-equallogic-san-hq-support-assist

Question #23
A customer requires a one-way replication of a volume to a remote Dell PS Series group.
Which three steps are required to configure replication? (Choose three.)
  1. A
    enable fast-failback replication
  2. B
    enable replication on the volume
  3. C
    assign Delegated space on the local partner
  4. D
    assign Delegated space on the remote partner
  5. E
    create a replication partnership on remote and local groups.
  6. F
    create a partnership on the local group only

Correct Answer:
BDE
D: Delegated space is a group -level setting that defines the total space dedicated to receiving and storing inbound replica sets on the secondary (remote) group from a primary group replication partner.
E: A single pool at the remote site can have partnerships with up to 16 other sites and receive replicas from them.

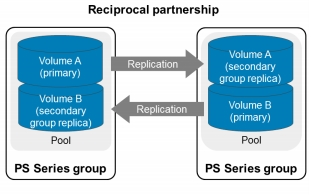

Figure, Example of partnership.

Incorrect Answers:
A: With the exception of failback events, PS Series replication is always a one-way process.
References: PS Series Asynchronous Replication Best Practices and Sizing Guide pages 10, 29 http://en.community.dell.com/dell-groups/dtcmedia/m/mediagallery/19854181/download

Question #24
A customer has an existing group with a single PS6210X member array configured as RAID 6. SAN HQ shows that the array is handling a very high level of IO.
The database admin reports higher than normal latency for disk access. The same system ran in the past without problems for months, but it is gradually starting to get worse. The customer has allocated only 20% of the useable space on the array. The customer needs to improve performance with the LEAST impact on production.
Which two options should the customer consider? (Choose two.)
  1. A
    split the existing member into two pools, and move the log files to the second pool
  2. B
    convert the existing member array in place to RAID 10
  3. C
    delete the array from the group, and rejoin the group with RAID 10
  4. D
    add a new member array to the group/pool at RAID 6
  5. E
    add a new member array to the group/pool at RAID 10

Correct Answer:
BC

Question #25
The final section of each exam is exclusively available to users with Contributor Access. This temporary measure was implemented to cover the expenses of the SecExams infrastructure and moderation staff while also decreasing the load on our infrastructure.
  1. A
    Restricted Option
  2. B
    Restricted Option
  3. C
    Restricted Option
  4. D
    Restricted Option
