Cisco® 300-410 Exam Practice Questions (P. 3)

  • Full Access (620 questions)
  • Six months of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #21

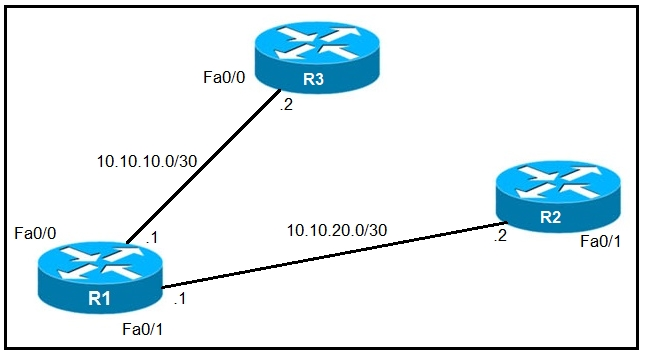

Refer to the exhibit. An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3
Fa0/0 interface. The route has changed to flow through router R2.
Which debug command is used to troubleshoot this issue?
  1. A
    debug ip flow
  2. B
    debug ip sla error
  3. C
    debug ip routing
  4. D
    debug ip packet

Correct Answer:
C

Question #22
Which configuration enables the VRF that is labeled `Inet` on FastEthernet0/0?
  1. A
    R1(config)# ip vrf Inet R1(config-vrf)#ip vrf FastEthernet0/0
  2. B
    R1(config)#ip vrf Inet FastEthernet0/0
  3. C
    R1(config)# ip vrf Inet R1(config-vrf)#interface FastEthernet0/0 R1(config-if)#ip vrf forwarding Inet
  4. D
    R1(config)#router ospf 1 vrf Inet R1(config-router)#ip vrf forwarding FastEthernet0/0

Correct Answer:
C
chatbot-img GPT-4o - Answer
C is indeed the correct configuration for enabling a VRF labeled 'Inet' on FastEthernet0/0. It achieves this from the global configuration mode, first by creating the VRF, and then associating it with the interface. The key step is the use of `ip vrf forwarding Inet` within the interface configuration mode, which correctly forwards the interface traffic through a designated VRF. This configuration sequence ensures that the interface is under the specified VRF, thus handling its traffic according to the VRF's routing table.

Question #23

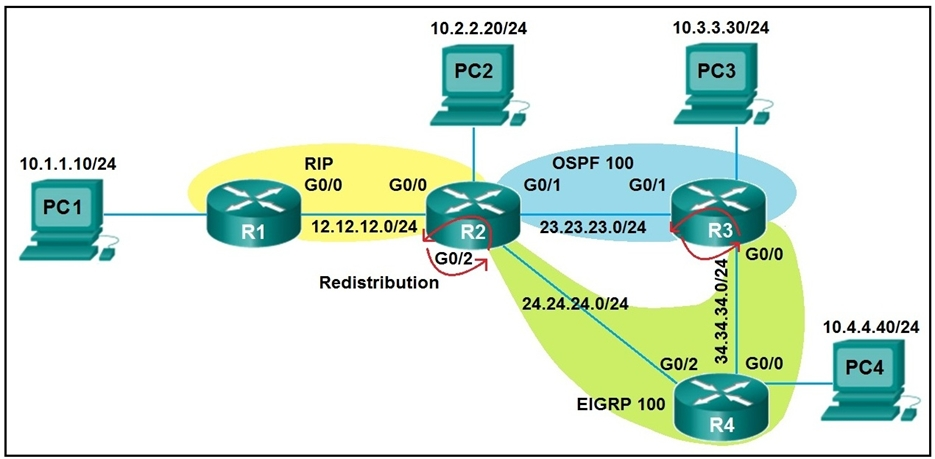

Refer to the exhibit. After redistribution is enabled between the routing protocols; PC2, PC3, and PC4 cannot reach PC1.
Which action can the engineer take to solve the issue so that all the PCs are reachable?
  1. A
    Set the administrative distance 100 under the RIP process on R2.
  2. B
    Filter the prefix 10.1.1.0/24 when redistributed from OSPF to EIGRP.
  3. C
    Filter the prefix 10.1.1.0/24 when redistributed from RIP to EIGRP.
  4. D
    Redistribute the directly connected interfaces on R2.

Correct Answer:
B

Question #24

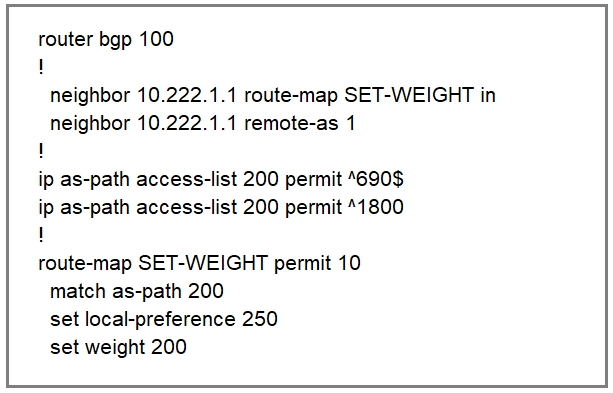

Refer to the exhibit. A router is receiving BGP routing updates from multiple neighbors for routes in AS 690.
What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1.1?
  1. A
    The local preference value in another neighbor statement is higher than 250.
  2. B
    The local preference value should be set to the same value as the weight in the route map.
  3. C
    The route map is applied in the wrong direction.
  4. D
    The weight value in another neighbor statement is higher than 200.

Correct Answer:
D
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_bgp/configuration/xe-3se/3850/irg-xe-3se-3850-book/irg-prefix-filter.html

Question #25

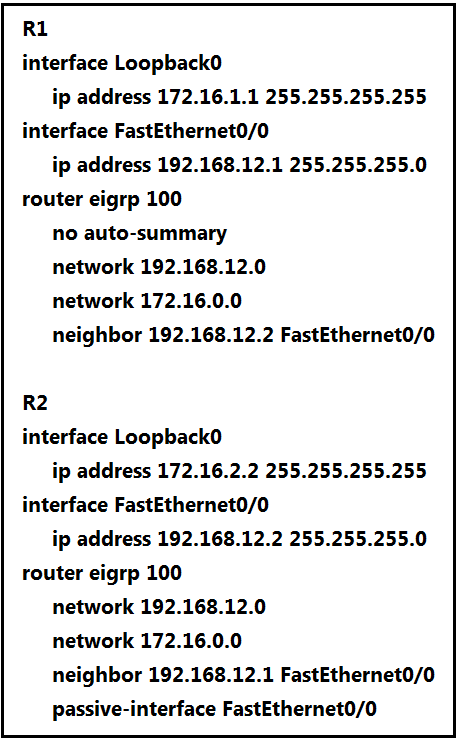

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency.
Which action establishes EIGRP adjacency?
  1. A
    Remove the current autonomous system number on one of the routers and change to a different value.
  2. B
    Add the passive-interface command to the R1 configuration so that it matches the R2 configuration.
  3. C
    Remove the passive-interface command from the R2 configuration so that it matches the R1 configuration.
  4. D
    Add the no auto-summary command to the R2 configuration so that it matches the R1 configuration.

Correct Answer:
C

Question #26
An engineer configured policy-based routing for a destination IP address that does not exist in the routing table.
How is the packet treated through the policy for configuring the set ip default next-hop command?
  1. A
    Packets are not forwarded to the specific next hop.
  2. B
    Packets are forwarded based on the routing table.
  3. C
    Packets are forwarded based on a static route.
  4. D
    Packets are forwarded to the specific next hop.

Correct Answer:
A
chatbot-img GPT-4o - Answer
The packet is not forwarded to the specific next hop even though the set ip default next-hop command is used when the destination IP is absent in the routing table. This occurs because the command checks for the destination IP in the routing table first. If it isn't found, the command does not execute policy routing. Instead, it follows the usual routing process or drops the packet if no route is available, rather than sending it to a specified default next hop. Thus, it's crucial to ensure that PBR configurations align with routable destinations to avoid packet loss or misrouting.

Question #27

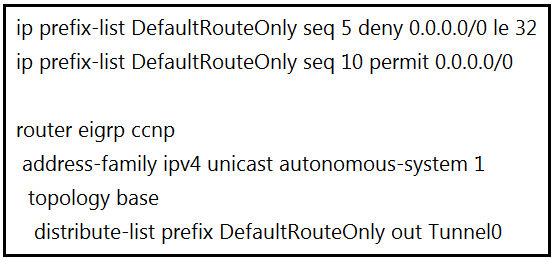

Refer to the exhibit. The administrator configured route advertisement to a remote low resources router to use only the default route to reach any network but failed.
Which action resolves this issue?
  1. A
    Remove the prefix keyword from the distribute-list command.
  2. B
    Remove the line with the sequence number 10 from the prefix list.
  3. C
    Change the direction of the distribute-list command from out to in.
  4. D
    Remove the line with the sequence number 5 from the prefix list.

Correct Answer:
D

Question #28

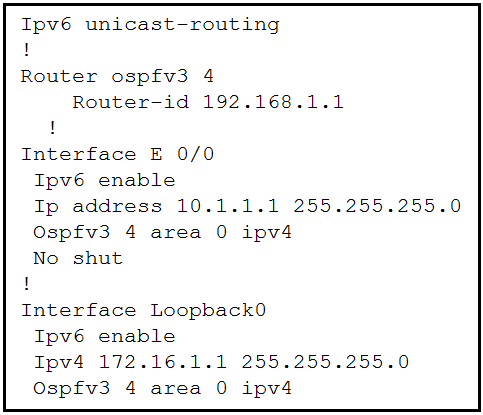

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface. The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up.
Which action fixes the problem on the branch router to bring the IPv6 neighbors up?
  1. A
    Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.
  2. B
    Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command.
  3. C
    Disable IPv6 on the E 0/0 interface using the no ipv6 enable command.
  4. D
    Enable the IPv4 address family under the E 0/0 interface by using the address-family ipv4 unicast command.

Correct Answer:
B

Question #29

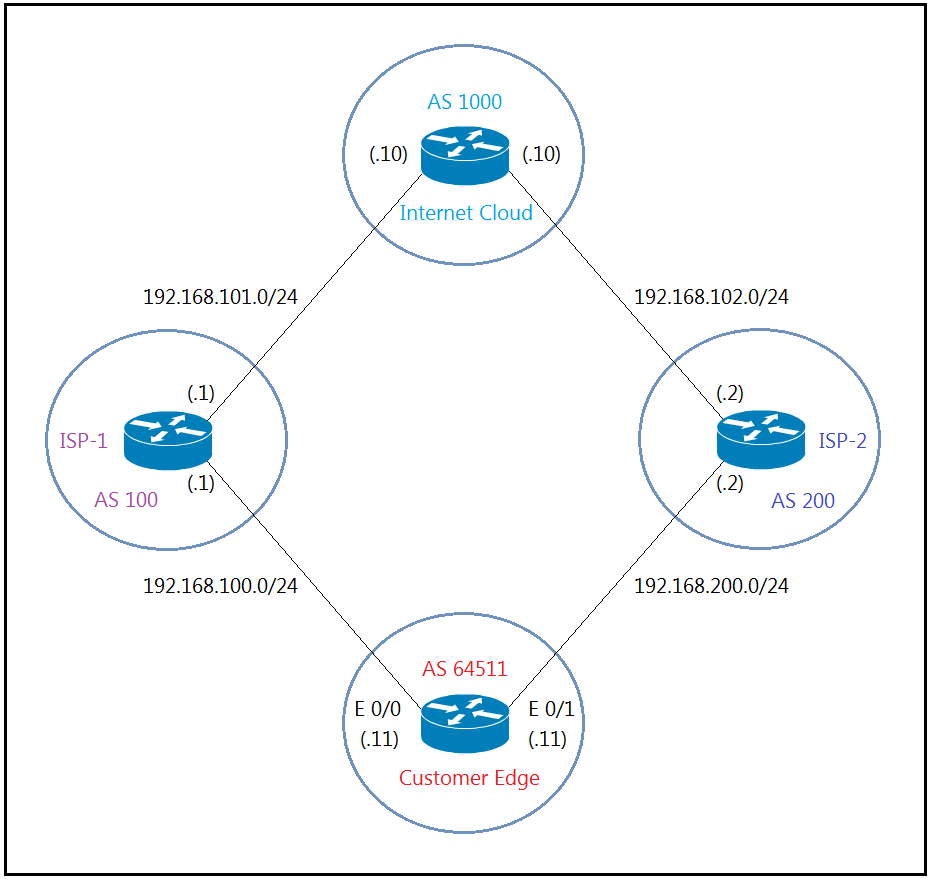

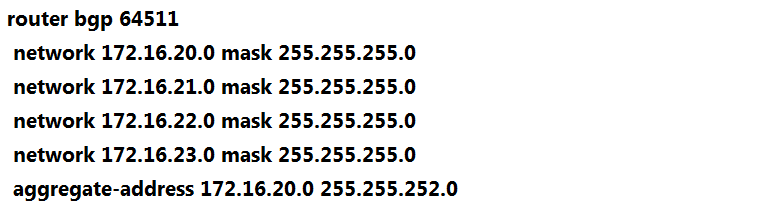

Refer to the exhibit. The network administrator has configured the Customer Edge router (AS 64511) to send only summarized routes toward ISP-1 (AS 100) and
ISP-2 (AS 200).

After this configuration, ISP-1 and ISP-2 continue to receive the specific routes and the summary route.
Which configuration resolves the issue?

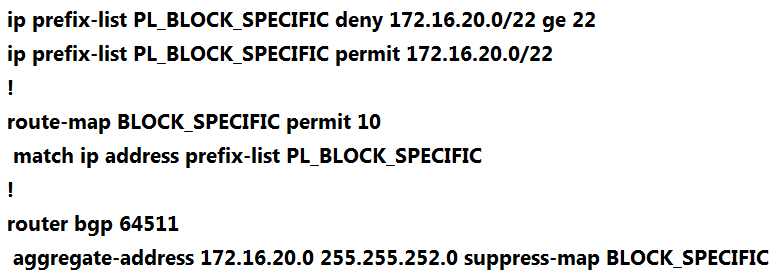

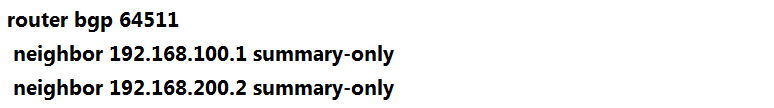

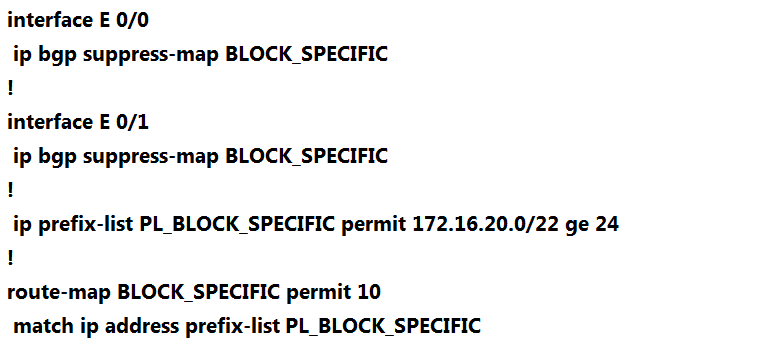

A.

B.

C.

D.


Correct Answer:
A

Question #30

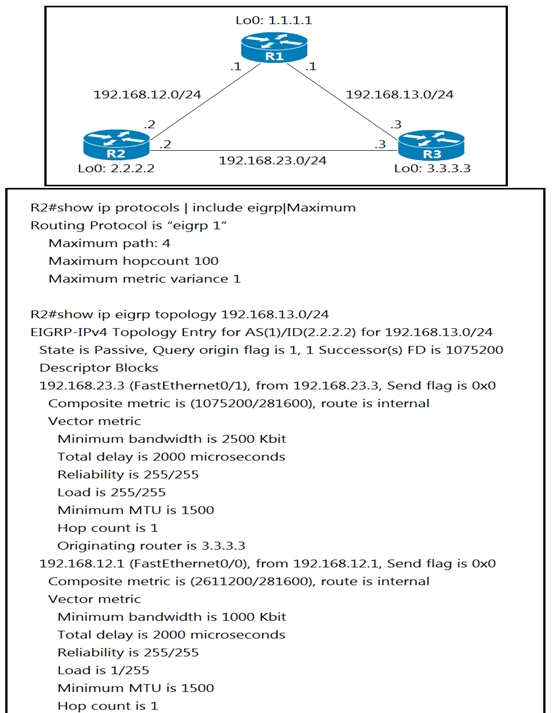

Refer to the exhibit. R2 has two paths to reach 192.168.13.0/24, but traffic is sent only through R3.
Which action allows traffic to use both paths?
  1. A
    Configure the variance 4 command under the EIGRP process on R2.
  2. B
    Configure the bandwidth 2000 command under interface FastEthernet0/0 on R2.
  3. C
    Configure the delay 1 command under interface FastEthernet0/0 on R2.
  4. D
    Configure the variance 2 command under the EIGRP process on R2.

Correct Answer:
A
