Question #7
HOTSPOT -
WingTip Toys is an Australian company based in Sydney. They are planning to integrate a legacy video teleconferencing (VTC) solution with Skype for Business
Server 2015.
Existing VTC in Sydney and Seattle are compatible with the Video Interoperability Server (VIS).
All VTCs in Sydney and Seattle are compatible with the Video Interoperability Server (VIS).
All VTCs are associated with a supported IP-PBX in each location.
The VIS solution will need to achieve high availability and site resiliency requirements.
The following is the information provided to facilitate the design of the VIS implementation.
Use the drop-down menus to select the answer choice that answers each question based on the information presented in the graphic.
NOTE: Each correct answer is worth one point.
Hot Area:
WingTip Toys is an Australian company based in Sydney. They are planning to integrate a legacy video teleconferencing (VTC) solution with Skype for Business
Server 2015.
Existing VTC in Sydney and Seattle are compatible with the Video Interoperability Server (VIS).
All VTCs in Sydney and Seattle are compatible with the Video Interoperability Server (VIS).
All VTCs are associated with a supported IP-PBX in each location.
The VIS solution will need to achieve high availability and site resiliency requirements.
The following is the information provided to facilitate the design of the VIS implementation.
Use the drop-down menus to select the answer choice that answers each question based on the information presented in the graphic.
NOTE: Each correct answer is worth one point.
Hot Area:
Question #8
HOTSPOT -
You plan to deploy a Skype for Business Server 2015 Edge Server infrastructure. The Edge Server deployment will be configured as shown in the following table.
You need to configure the DNS records for Server1 to support the following features:
✑ Automatic client sign-in
✑ Discovery of federated partners
Which DNS records should you configure?
To answer, configure the correct service, protocol, and host for each SRV record in the answer area.
Hot Area:
You plan to deploy a Skype for Business Server 2015 Edge Server infrastructure. The Edge Server deployment will be configured as shown in the following table.
You need to configure the DNS records for Server1 to support the following features:
✑ Automatic client sign-in
✑ Discovery of federated partners
Which DNS records should you configure?
To answer, configure the correct service, protocol, and host for each SRV record in the answer area.
Hot Area:
Correct Answer:
References:
https://technet.microsoft.com/en-us/library/bb663700(v=office.12).aspx https://technet.microsoft.com/en-gb/library/dn951397.aspx
References:
https://technet.microsoft.com/en-us/library/bb663700(v=office.12).aspx https://technet.microsoft.com/en-gb/library/dn951397.aspx
Question #9
DRAG DROP -
You support Skype for Business clients and servers in your customers company network. All computers are members of a single Active Directory Domain
Services (AD DS) domain named contoso.local. The single front-end Skype for Business Server 2015 server is configured to support a Session Initiation Protocol
(SIP) domain named contoso.com.
You configure Skype for Business to support users from a new SIP domain named proseware.net.
The users of the new SIP domain report that the Skype for Business client is able to connect to the Skype for Business server only after manual configuration.
Users of the Contoso.com SIP domain are able to connect to Skype for Business server automatically, both internally and externally.
You need to restore the internal and external automatic discovery features for the users of the proseware.net SIP domain.

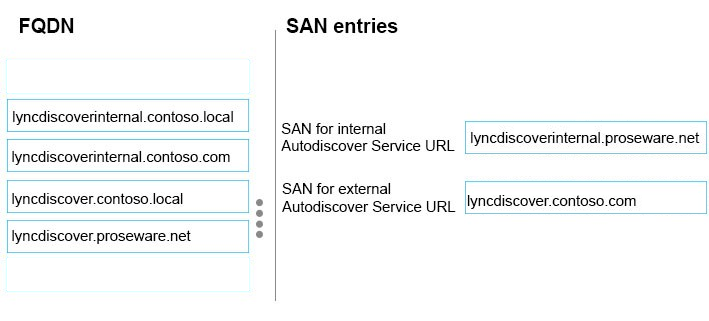

Which fully qualified domain name (FQDN) should you add to the subject alternative name (SAN) for each certificate? To answer, drag the appropriate FQDN to the correct certificate request. Each FQDN may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Select and Place:
You support Skype for Business clients and servers in your customers company network. All computers are members of a single Active Directory Domain
Services (AD DS) domain named contoso.local. The single front-end Skype for Business Server 2015 server is configured to support a Session Initiation Protocol
(SIP) domain named contoso.com.
You configure Skype for Business to support users from a new SIP domain named proseware.net.
The users of the new SIP domain report that the Skype for Business client is able to connect to the Skype for Business server only after manual configuration.
Users of the Contoso.com SIP domain are able to connect to Skype for Business server automatically, both internally and externally.
You need to restore the internal and external automatic discovery features for the users of the proseware.net SIP domain.
Which fully qualified domain name (FQDN) should you add to the subject alternative name (SAN) for each certificate? To answer, drag the appropriate FQDN to the correct certificate request. Each FQDN may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Select and Place:
Question #10
HOTSPOT -
You have a Skype for Business Server 2015 infrastructure as shown in the exhibit. Click the Exhibit button.
The infrastructure contains an Enterprise Edition Front End pool.
You plan to deploy Persistent Chat. The solution must minimize the deployment of additional servers whenever possible.
You need to identify the placement of the components required for Persistent Chat.
Where should you deploy the Persistent Chat components? To answer, select the appropriate server to deploy each component in the answer area.
Hot Area:
You have a Skype for Business Server 2015 infrastructure as shown in the exhibit. Click the Exhibit button.
The infrastructure contains an Enterprise Edition Front End pool.
You plan to deploy Persistent Chat. The solution must minimize the deployment of additional servers whenever possible.
You need to identify the placement of the components required for Persistent Chat.
Where should you deploy the Persistent Chat components? To answer, select the appropriate server to deploy each component in the answer area.
Hot Area:
