Huawei H12-831 Exam Practice Questions (P. 5)

As shown in the figure:

As shown in the figure:

OSPFv2 is an IGP running on an IPv4 network; OSPFv3 is an IGP running on an IPv6 network. The basic working mechanism of OSPFv3 is the same as OSPFv2, such as the election of DR and BDR. As shown in the figure, an engineer uses three routers to test IPv6 services. He wants to realize the interconnection and interoperability of IPv6 networks by running OSPFv3.

Which of the following statements regarding the election of DR on this network is correct?

As shown in the figure, the cost value of the link that all interfaces of the router enable OSPF is identified in the figure. Loogback0 interfect of R2 is advertised in area 0. In area 1, both R2 and R3 will be transmitted in the form of Typae3 LSA 10.0.2.2/32 routing information.

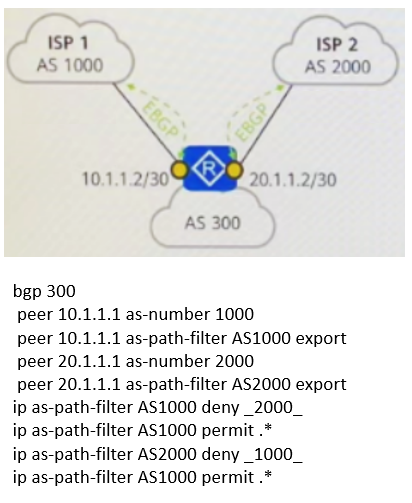

An enterprise purchased the leased lines of two operators. In order to optimize the route, the enterprise used the 6GP protocol to learn routing entries of the two operators. However, the company found that after such a configuration, the traffic of the export routing increased greatly. After the network engineering investigation, it was found that the traffic of the two operators was passed to each other through the company's export router.

Therefore, the company intends to use routing strategies to prevent the traffic between different operators from passing each other. Is the configuration in the figure correct?

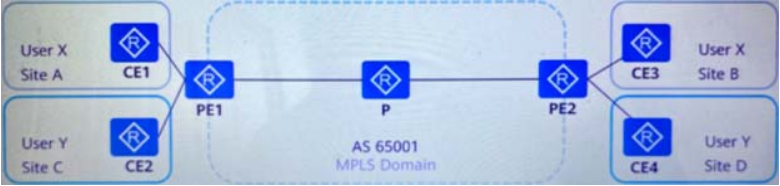

As shown in the figure, the carrier BGP/MPLS IP VPN backbone network constructs SP through DP. If you want to realize the intercommunication between the two sites of user X through the BGP/MPLS IPVPN network, the 32bit mask of Loopback interface address must be used between PE1 and PE2 to establish the MP-IBGP peer relationship.

As shown in the figure, all interfaces of the router enable OSPF, among which R4 and R5 can establish OSPF virtual connections.

As shown in the figure, OSPF is deployed in a campus, and Area 1 is deployed as an NSSA area. By default, R2 will automatically generate a Type 7 LSA default route and flood it in the NSSA area.

As shown in the figure, network administrator A on the R1 router, after modifying the Local Preference value of the routing entry sent to R2 through the routing policy, can control the path of traffic leaving AS100.

As shown in the figure, all routers run OSPF, because R3 is in the backbone area, so there is no type 3 LSA in the LSDB of R3.
