Question #21
As shown in the figure, the cost value of the link that all interfaces of the router enable DSPF is identified in the figure.

The Loopback D interface of R2 is advertised in area 1. Then the cost value of R1 to 10.2/32 is:
  1. A
    200
  2. B
    150
  3. C
    50
  4. D
    100

Correct Answer:
A

Question #22
As shown in the figure, all interfaces of the router enable OSPF. The ip address identified in the figure is the IP address of the device's Loopback 0 port. R1, R2, R3EJLoopbacD are advertised in area 1, and Loopbacfk D of R4 is advertised in area D, the Loopback D of R5 is advertised in area 2. Which of the following addresses can ping each other?
  1. A
    10.0.3.3 and 10.0.5.5
  2. B
    10.0.4.4 and 10.0.2.2
  3. C
    10.0.2.2 and 10.0.3.3
  4. D
    10.0.2.2 and 10.0.5.5

Correct Answer:
C

Question #23
According to this picture, we can judge:
  1. A
    The system ID of R1 is ee8c.a0c2.bafl
  2. B
    R1 has both leve1-1 and level-1-2 link state information
  3. C
    R1 only has link state information for leve1-2
  4. D
    In the leve1-2 network, there are a total of 8 routers

Correct Answer:
A

Question #24
In the network shown in the figure below, if you want to implement a remote LDP session between SWA and SWC, which statement is correct?
  1. A
    No need to specify the lsr-id of the correct equivalent
  2. B
    The configuration in the figure can be achieved
  3. C
    Need to create a remote peer, and then specify the lsr-id of the peer
  4. D
    Need to be equipped with a straight connection port to establish a TCP connection

Correct Answer:
C

Question #25
As shown in the figure, MPLS/BGP IPVPN is deployed in the network. The MP-BGP neighbor relationship is established between PE1 and PE2 through the LoopbackD interface. After the configuration is completed, it is found that CE1 and CE2 cannot learn routes from each other. Use the command on PE2 to query neighbor information as shown in the figure. What is the most likely cause of the problem?
  1. A
    The VPN instance parameters on PE1 or PE2 are incorrectly configured
  2. B
    PE1 and PE2 are not enabled with neighbors in the BGP-VPN4 unicast address family view
  3. C
    The LSP tunnel between PE1 and PE2 is not established
  4. D
    The routing protocol configuration between PE1 or PE2 and the respective CE is incorrect

Correct Answer:
B

Question #26
According to this picture, we can judge:
  1. A
    R1 is configured with regional authentication
  2. B
    The device type of R1 is Level-1
  3. C
    The device type of R1 is Level-2
  4. D
    R1 has configured the routing domain authentication

Correct Answer:
C

Question #27
According to this picture, we can judge:
  1. A
    The device type of R3 must be Level-1-2
  2. B
    Unable to determine the device type of R3
  3. C
    The device type of R3 must be Level-1
  4. D
    The device type of R3 must be Level-2

Correct Answer:
A

Question #28

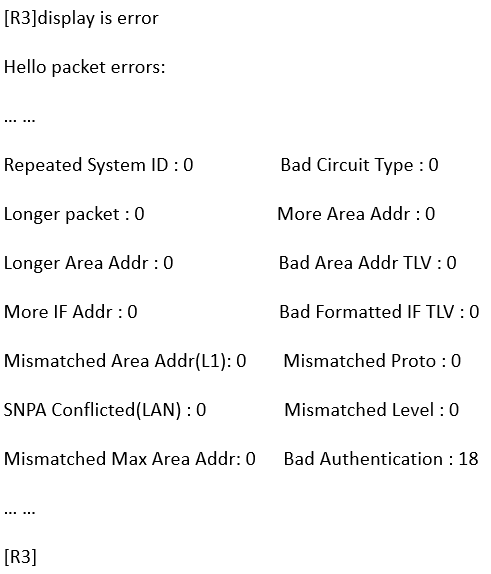

The IS-IS neighbor between R3 and R1 is not established. According to the information in this figure, what is the possible cause?
  1. A
    The IIH certification of R3 and R1 failed
  2. B
    The System ID of R3 and R1 are duplicated
  3. C
    The IS-Level of R3 and R1 do not match
  4. D
    The circuit-type of the interconnection interface between R3 and R1 does not match

Correct Answer:
A

Question #29
The network administrator A wants to use ACL to match only the four routing entries 1, 3.5, and 7 in the figure. How many ACL rules does the network administrator A need to configure at least?
  1. A
    2
  2. B
    1
  3. C
    4
  4. D
    3

Correct Answer:
B

Question #30
As shown in the figure, an engineer uses 4 routers to test branch network interoperability. Among them, R1, R2, and R3 in branch 1 deploy OSPF to achieve network interoperability. R2, R3, and R4 in branch 2 deploy IS-S to achieve network interoperability.

Now the engineer wants to realize the loopback address of R1 to R4. Which of the following operations can meet this requirement?
  1. A
    In the OSFF process and the IS-IS process of R2, respectively advertise the default route
  2. B
    No configuration is required
  3. C
    Advertise the default route only in the IS-IS process of R2
  4. D
    Advertise the default route only in the OSPF process of R2

Correct Answer:
A
