Question #41
In STP, which of the following items may affect the selection of the root switch? (Choose two.)
  1. A
    Switch priority.
  2. B
    Switch port ID.
  3. C
    Switch interface bandwidth.
  4. D
    Switch MAC address.
  5. E
    Switch IP address.

Correct Answer:
AB

Question #42
Which of the following are features of the OSPF protocol?
  1. A
    Routing loops are likely to occur.
  2. B
    Triggered update is supported.
  3. C
    The shortest path is calculated based on the number of hops.
  4. D
    Area division is supported.

Correct Answer:
D

Question #43
Static NAT can only implement one-to-one mapping between private and public addresses.
  1. A
    True
  2. B
    False

Correct Answer:
B

Question #44
Which of the following statements about the routing table show in the figure are true?
  1. A
    The next hop in the route to the destination network 10.0.3.3/32 is not directly connected. Therefore, the local router does not forward data packets destined for 10.0.3.3.
  2. B
    The local router forwards data packets destined for 10.0.3.3 from Ethernet0/0/0.
  3. C
    The local router forwards data packets destined for 10.0.2.2 from Erthernet0/0/0.
  4. D
    The local router forwards data packets destined for 10.0.12.1 from Ethernet0/0/0.

Correct Answer:
B

Question #45
Which of the following methods can be used to assign service VLANs during campus network planning?
  1. A
    VLAN assignment by geographic area
  2. B
    VLAN assignment by logical area
  3. C
    VLAN assignment by personnel structure
  4. D
    VLAN assignment by service type

Correct Answer:
D

Question #46
If the MAC address of an interface is 00E0-FCEF-0FEC, the corresponding EUI-64 address is ( ).
  1. A
    02E0-FCFF-FEEF-0FEC
  2. B
    02E0-FCEF-FFFE-0FEC
  3. C
    00E0-FCFF-FEEF-0FEC
  4. D
    00E0-FCEF-FFFE-0FEC

Correct Answer:
D

Question #47
On Huawei AR G3 Series routers, which authentication modes does AAA support?
  1. A
    None.
  2. B
    Local.
  3. C
    Radius.
  4. D
    802.1X

Correct Answer:
C

Question #48
Which of the following statements about IPv6 anycast addresses are true? (Choose three.)
  1. A
    Packets destined for an anycast address are sent to the nearest interface identified based on the routing distance.
  2. B
    Anycast and unicast addresses use the same address space.
  3. C
    IPv6 anycast addresses provide redundancy functions for services.
  4. D
    IPv6 anycast addresses implement load balancing for services.

Correct Answer:
ACD

Question #49

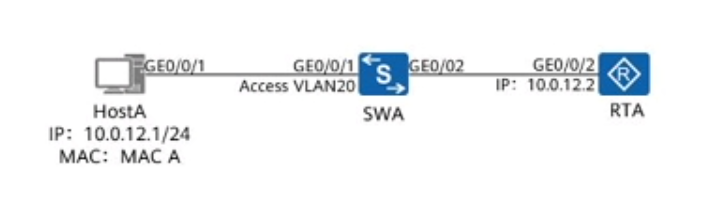

As shown in the following figure, the router uses a sub-interface as the gateway of the host and the IP address of the gateway is 10.0.12.2. Which of the following commands can be used to meet this requirement?
  1. A
    interface GigabitEthernet0/0/0.20
    dot1q termination vid 20
    ip address 10.0.12.2 255.255.255.0
    arp broadcast enable
    #
  2. B
    interface GigabitEthernet0/0/0.10
    dot1q termination vid 20
    ip address 10.0.12.2 255.255.255.0
    arp broadcast enable
    #
  3. C
    interface GigabitEthernet0/0/0.20
    dot1q termination vid 10
    ip address 10.0.12.2 255.255.255.0
    arp broadcast enable
    #
  4. D
    interface GigabitEthernet0/0/0.10
    dot1q termination vid 10
    ip address 10.0.12.2 255.255.255.0
    arp broadcast enable
    #

Correct Answer:
D

Question #50
Compared with STP, which of the following port roles does RSTP add?
  1. A
    Root port
  2. B
    Designated port
  3. C
    Alternate port
  4. D
    Backup port

Correct Answer:
D
