Question #21
An architect proposes these products for a customer who wants a wireless and wired upgrade:
✑ Aruba 2930M switches at the access layer
✑ Aruba 5406R switches at the core
✑ Aruba AP-325s
✑ Aruba 7205 Mobility Controllers (MCs), deployed in a cluster
✑ Aruba Mobility Master (MM)
✑ Aruba ClearPass Cx000V
✑ Aruba AirWare
The architect also needs to propose a security plan for the solution. The customer has 900 employees and up to 30 guests a day. The customer wants to protect the internal perimeter of the network with authentication and simple access controls. The customer is most concerned about wireless security, but also wants to ensure that only trusted users connect on the wire. However, the customer also wants all wired traffic to be forwarded locally on access layer switches. The customer already has a third-party firewall that protects the data center.
The customer wants to use certificates to authenticate user devices, but is concerned about the complexity of deploying the solution. The architect should recommend a way to simplify. For the most part users connect company-issued laptops to the network. However, users can bring their own devices and connect them to the network. The customer does not know how many devices each user will connect, but expects about two or three per-user. DHCP logs indicate that the network supports a maximum of 2800 devices.
Refer to the provided scenario. Based on the plan for wired authentication, what is a correct plan for wired user VLANs?
- Ause the MCs to assign wired users to their VLANs, and extend the VLANs to a Layer 3 switch connected to the MC
- Bspecify the VLANs in network policies on AirWare, and ensure that both the switches and MCs are managed by AirWare
- Cassign wired users to different VLANs from wireless users, based on port or role assignments on access layer switches. Extend the VLANs to the core.
- Dconfigure the same roles on switches and MCs to place wired and wireless users in the same VLANs. Extend VLANs from access layer switches to the core.
C

Hi! Do you need help with this question ?
- Why isn't the A the right answer?
- Traducir la pregunta al español
Contributor get free access to an augmented ChatGPT 4 trained with the latest IT Questions.
Question #22
An architect proposes these products for a customer who wants a wireless and wired upgrade:
✑ Aruba 2930M switches at the access layer
✑ Aruba 5406R switches at the core
✑ Aruba AP-325s
✑ Aruba 7205 Mobility Controllers (MCs), deployed in a cluster
✑ Aruba Mobility Master (MM)
✑ Aruba ClearPass Cx000V
✑ Aruba AirWare
The architect also needs to propose a security plan for the solution. The customer has 900 employees and up to 30 guests a day. The customer wants to protect the internal perimeter of the network with authentication and simple access controls. The customer is most concerned about wireless security, but also wants to ensure that only trusted users connect on the wire. However, the customer also wants all wired traffic to be forwarded locally on access layer switches. The customer already has a third-party firewall that protects the data center.
The customer wants to use certificates to authenticate user devices, but is concerned about the complexity of deploying the solution. The architect should recommend a way to simplify. For the most part users connect company-issued laptops to the network. However, users can bring their own devices and connect them to the network. The customer does not know how many devices each user will connect, but expects about two or three per-user. DHCP logs indicate that the network supports a maximum of 2800 devices.
Refer to the provided scenario.
Which solution should the architect recommend on the 2930M switches to authenticate and control wired employee devices?
- AMAC-Auth on edge ports and no tunneled node
- B802.1X on edge ports and per-user tunneled node
- C802.1X on edge ports and no tunneled nodeMost Voted
- DMAC-Auth on edge ports and per-user tunneled node
A

Hi! Do you need help with this question ?
- Why isn't the A the right answer?
- Traducir la pregunta al español
Contributor get free access to an augmented ChatGPT 4 trained with the latest IT Questions.
Question #23
7010?
- Athe need to support 2000 users or devices
- Bthe need to support PoE+
- Cthe need to manage 20 APs
- Dthe need to connect 20 APs directly to the MCMost Voted
A

Hi! Do you need help with this question ?
- Why isn't the A the right answer?
- Traducir la pregunta al español
Contributor get free access to an augmented ChatGPT 4 trained with the latest IT Questions.
Question #24
Which benefit of this feature should the architect explain?
- AClustering provides wireless client load balancing and seamless failover for client sessions.Most Voted
- BClustering provides high stability because one MC is active for all sessions and one is standby for all sessions.
- CClustering enables an AP with a failed MC to operate on its own briefly to ensure seamless connectivity.
- DClustering enables an AP with a failed MC to reconnect to a new AP after a short bootstrap.
B

Hi! Do you need help with this question ?
- Why isn't the A the right answer?
- Traducir la pregunta al español
Contributor get free access to an augmented ChatGPT 4 trained with the latest IT Questions.
Question #25

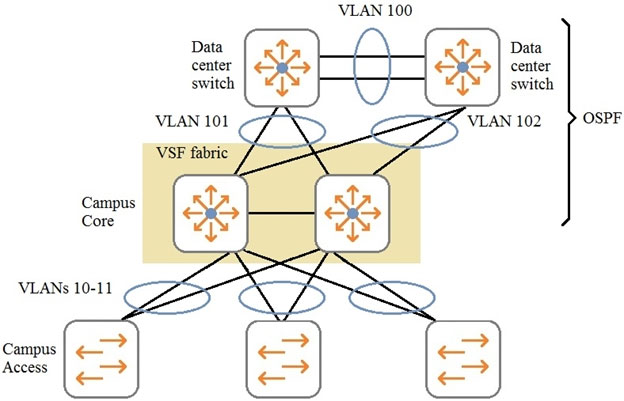

The customer requires fast failover if any one link or core device fails. Which additional technology should the architect plan on the core VSF fabric to meet these criteria?

Hi! Do you need help with this question ?
- Why isn't the A the right answer?
- Traducir la pregunta al español
Contributor get free access to an augmented ChatGPT 4 trained with the latest IT Questions.
