Question #31

Refer to the exhibit. Which type of DDoS attack will be mitigated by this configuration?
  1. A
    teardrop attack
  2. B
    smurf attack
  3. C
    SYN flood
  4. D
    SIP INVITE flood attacks

Correct Answer:
B

Question #32

Refer to the exhibit. While troubleshooting the network, a network operator with an employee id: 1234:55:678 is trying to ping XR1. Which result should the operator expect when trying to ping to an XR1 local address?
  1. A
    AII ICMP traffic is dropped
  2. B
    AII ICMP traffic responds successfully
  3. C
    ICMP traffic works at a policed rate of 19 bytes per second every 100 ms
  4. D
    ICMP traffic works at a policed rate of 19 packets every 100 ms

Correct Answer:
B

Question #33

Refer to the exhibit. Which show command should be implemented to display per-interface statistics about uRPF drops and suppressed drops?
  1. A
    show cef interface
  2. B
    show ip traffic
  3. C
    show ip interface
  4. D
    show ip interface brief

Correct Answer:
C
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_data_urpf/configuration/xe-3s/sec-data-urpf-xe-3s-book/cfg-unicast-rpf.html#GUID-3609F224-
5D40-422E-8754-B12C60677612

Question #34

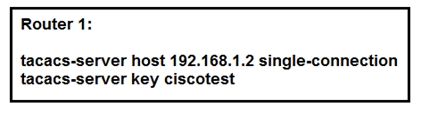

Refer to the exhibit. What is the result of this configuration?
  1. A
    Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authorization
  2. B
    Router 1 and the TACACS+ server maintain one open connection between them only when network administrator is accessing the router with password ciscotest
  3. C
    Router 1 and the TACACS+ server maintain one open connection between them
  4. D
    Router 1 opens and closes a TCP connection to the TACACS+ server every time a user requires authentication

Correct Answer:
B

Question #35
Which QoS model allows hosts to report their QoS needs to the network?
  1. A
    IntServ
  2. B
    CB-WFQ
  3. C
    DiffServ
  4. D
    MQC

Correct Answer:
A
IntServ follows the signaled-QoS model, where the end-hosts signal their QoS needs to the network.
Reference:
https://www.cisco.com/en/US/technologies/tk543/tk766/technologies_white_paper09186a00800a3e2f.html

Question #36

Refer to the exhibit. Which show command shows statistics for the control plane policy and is used to troubleshoot?
  1. A
    show control-plane CoPP
  2. B
    show policy control-plane
  3. C
    show control-plane
  4. D
    show policy-map control-plane

Correct Answer:
D

Question #37

Refer to the exhibit. An engineer has started to configure a router for secure remote access as shown. All users who require network access need to be authenticated by the SSH protocol. Which two actions must the engineer implement to complete the SSH configuration? (Choose two.)
  1. A
    Configure an IP domain name.
  2. B
    Configure ACL 100 to permit access to port 22.
  3. C
    Configure a password under the vty lines.
  4. D
    Configure crypto keys.
  5. E
    Configure service password encryption.

Correct Answer:
AD

Question #38

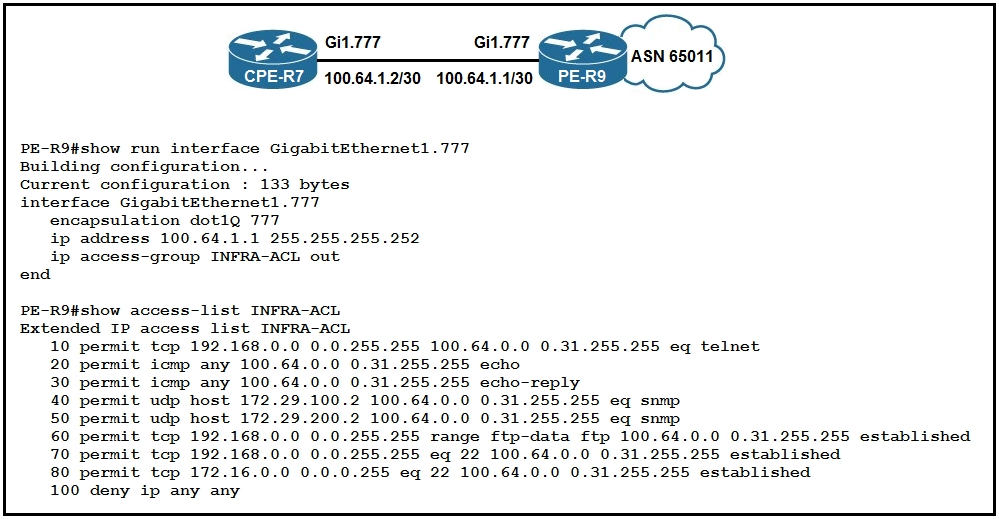

Refer to the exhibit. To protect in-band management access to CPE-R7, an engineer wants to allow only SSH management and provisioning traffic from management network 192.168.0.0/16. Which infrastructure ACL change must be applied to router PE-R9 to complete this task?
  1. A
    ip access-list extended INFRA-ACL 15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 443
  2. B
    ip access-list extended INFRA-ACL no 10 15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 22
  3. C
    ip access-list extended INFRA-ACL 15 permit tcp 192.168.0.0 0.0.255.255 range 49152 65535 100.64.0.0 0.31.255.255 eq 22
  4. D
    ip access-list extended INFRA-ACL no 10 15 permit tcp 192.168.0.0 0.0.255.255 eq 22 100.64.0.0 0.31.255.255 eq 22

Correct Answer:
B

Question #39

Refer to the exhibit. A network engineer notices that router R2 is failing to install network 172.16.33.1/32 in the routing table. Which configuration must the engineer apply to R2 to fix the problem?
  1. A
    R2(config)# access-list 1 permit 172.16.33.0 0.0.0.255
  2. B
    R2(config)# access-list 1 permit 172.16.33.0 255.255.0.0
  3. C
    R2(config)# access-list 1 permit 172.16.33.0 255.255.255.0
  4. D
    R2(config)# access-list 1 permit 172.16.33.0 255.0.0.0

Correct Answer:
A

Question #40
Which two PHY modes are available to implement an IOS XR 10 Gigabit Ethernet interface? (Choose two.)
  1. A
    LAN
  2. B
    SONET
  3. C
    MAN
  4. D
    WAN
  5. E
    WDWM

Correct Answer:
AD
chatbot-img GPT-4o - Answer
Absolutely, A and D are spot on! For the 10 Gigabit Ethernet interfaces on IOS XR, LAN and WAN PHY modes ensure the flexibility needed in various physical layer deployments. This configuration aids tremendously in adapting to different network scales from local area networks through to wide area networks, aligning perfectly with Cisco's versatile interfacing options. Plus, it's all backed up by the ample documentation on Cisco's site, confirming the reliability of these modes for real-world applications. Keep this in mind when setting up your interfaces!
