Cisco® 300-165 Exam Practice Questions (P. 5)

  • Full Access (328 questions)
  • Six months of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #41
Instructions -
* This task does not require device configuration.
* Click Cisco Nexus 5548 to gain console access. No console or enable passwords are required.
* To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
* There are four multiple-choice questions with this task.

Scenario -

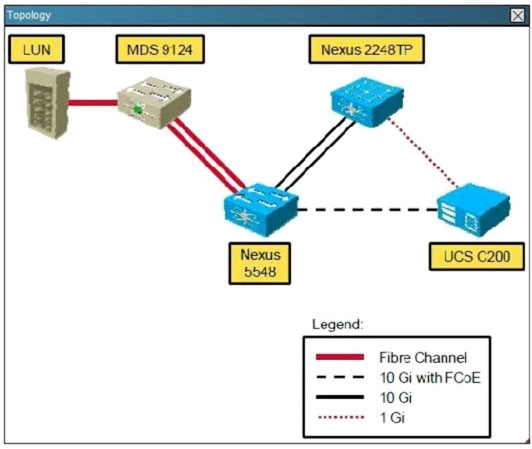

Customer is deploying Cisco Nexus 5548 switch with FCoE in their new data center, as shown in the topology diagram. Click Nexus5548 icon to run show commands and answer the questions.


Ethernet interface 1/5 on Cisco Nexus 5548 is connected to Cisco UCS C220 rack server. What is the status of Ethernet 1/5 interface for FCoE functionality?
  1. A
    Interface reset on Ethernet 1/5 is preventing the FCoE connection from coming up
  2. B
    MTU size of 1500 on Ethernet interface 1/5 needs to be changed for FCoE to come UP
  3. C
    Cisco Nexus 5548 needs a layer 3 daughter card for FCoE to come UP on the Ethernet interface 1/5
  4. D
    Ethernet interface 1/5 is operational for FCoE and the status is UP

Correct Answer:
D

Question #42
Instructions -
* This task does not require device configuration.
* Click Cisco Nexus 5548 to gain console access. No console or enable passwords are required.
* To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
* There are four multiple-choice questions with this task.

Scenario -
Customer is deploying Cisco Nexus 5548 switch with FCoE in their new data center, as shown in the topology diagram. Click Nexus5548 icon to run show commands and answer the questions.


What is the status of FC interface associated with ethernet 1/5 indicate?
  1. A
    Trank VSAN 11 is isolated
  2. B
    Interface vfc 5 is up and running for the assigned VSAN
  3. C
    Trunk VSAN 11 is initializing
  4. D
    VSAN to FC mapping is not working as expected

Correct Answer:
B

Question #43
Instructions -
* This task does not require device configuration.
* Click Cisco Nexus 5548 to gain console access. No console or enable passwords are required.
* To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
* There are four multiple-choice questions with this task.

Scenario -
Customer is deploying Cisco Nexus 5548 switch with FCoE in their new data center, as shown in the topology diagram. Click Nexus5548 icon to run show commands and answer the questions.


When configuring FCoE VLANs and Virtual Fiber Channel (vFC) Interfaces, what guidelines must be followed?
  1. A
    Each vFC interface must be bound to an FCoE-enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  2. B
    Each FC interface must be bound to an FCoE-enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  3. C
    Each vFC interface must be bound to an FC enabled Ethernet or EtherChannel interface or to the MAC address of a remotely connected adapter
  4. D
    Each vFC interface must be bound to an FCoE-enabled vFC or EtherChannel interface or to the MAC address of a remotely connected adapter

Correct Answer:
A

Question #44
You have two Cisco Nexus 7700 Series switches named SwitchA and SwitchB. You use the Rapid PVST+ protocol. You must configure the switches as the STP root switches for VLANs 100 to 200. Which command set should you run?
  1. A
    SwitchA(config)# spanning-tree vlan 100-200 priority 61440 SwitchB(config)# spanning-tree vlan 100-200 priority 61440
  2. B
    SwitchA(config-if)# spanning-tree guard root SwitchB(config-if)# spanning-tree guard root
  3. C
    SwitchA(config-if)# spanning-tree cost 100 SwitchB(config-if)# spanning-tree cost 100
  4. D
    SwitchA(config)# spanning-tree vlan 100-200 root primary SwitchB(config)# spanning-tree vlan 100-200 root secondary

Correct Answer:
D

Question #45
Which action limits the maximum number of routes that are allowed in the routing table?
  1. A
    Use a BGP filter.
  2. B
    Use only static routes.
  3. C
    Use the maximum routes command inside address family.
  4. D
    Use a route map to filter routes.

Correct Answer:
C

Question #46
Which two items are services that are provided by Cisco Fabric Services? (Choose two.)
  1. A
    RSA key pair distribution
  2. B
    device alias distribution
  3. C
    Kerberos proxy distribution
  4. D
    DPVM configuration distribution
  5. E
    VLAN database distribution

Correct Answer:
BD
Reference:
http://www.cisco.com/en/US/products/ps5989/products_configuration_guide_chapter09186a0080662ca8.html

Question #47
You have two Fibre Channel switches that are connected via EISL. You discover that the fabrics are isolated. What are two possible causes of the fabric isolation?
(Choose two.)
  1. A
    mismatched SAN port channel group modes
  2. B
    mismatched VSANs on either switch
  3. C
    mismatched active zone set databases
  4. D
    mismatched line card types
  5. E
    mismatched switch series

Correct Answer:
BC
Reference:
http://www.cisco.com/en/US/products/ps5989/prod_troubleshooting_guide_chapter09186a008067a112.html

Question #48
N7K-1(config)# feature vpc -

N7K-1(config)# vpc domain 113 -
N7K-1(config-vpc-domain)# peer-gateway
N7K-1(config-vpc-domain)#

N7K-2(config)# feature vpc -

N7K-2(config)# vpc domain 113 -
N7K-2(config-vpc-domain)# peer-gateway
N7K-2(config-vpc-domain)#
Refer to the exhibit. What is the consequence of configuring peer-gateway on the two vPC peers N7K-1 and N7K-2?
  1. A
    The downstream device detects only one of the vPC peers as its gateway.
  2. B
    This configuration enables the downstream device to use DHCP to obtain its default gateway.
  3. C
    Nothing, this is the standard vPC configuration to make the feature work.
  4. D
    The downstream device can use DMAC of N7K-1 on the link to N7K-2, and N7K-2 forwards the packet.

Correct Answer:
D

Question #49
Which command should you run to limit IS-IS LSP flooding on a network?
  1. A
    isis hello-padding
  2. B
    isis passive-interface
  3. C
    is-type level-1
  4. D
    isis mesh-group ISIS-MESH

Correct Answer:
C
Reference:
http://www.cisco.com/c/en/us/td/docs/ios/12_2/ip/configuration/guide/1cfisis.html#wp1001173

Question #50
What are two requirements for configuring SAN device aliases? (Choose two.)
  1. A
    The aliases are independent between fabric nodes.
  2. B
    The aliases can be assigned to WWPN and WWNN.
  3. C
    The aliases can be assigned to WWNN only.
  4. D
    The aliases can be assigned to WWPN only.
  5. E
    The aliases must be 64 characters or less.

Correct Answer:
DE
Reference:
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_2/configuration/guides/fabric/DCNM-SAN/fm_fabric/ddas.html
