Question #22

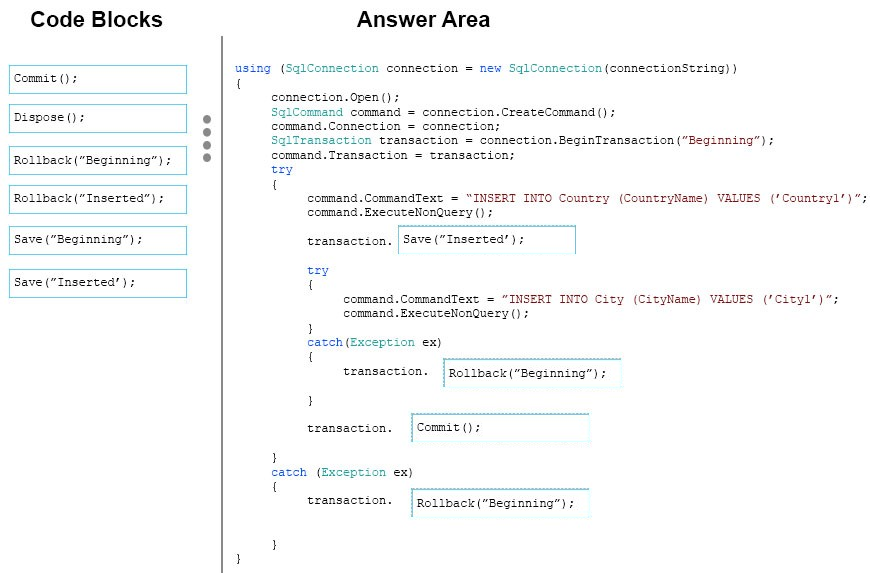

DRAG DROP -
You have an Azure SQL Database that contains two tables named Country and City.
You need to insert a country into the Country table and a city into the City table. The solution must meet the following requirements:
✑ If an error occurs while attempting to add the country, the city must NOT be added.
✑ If an error occurs while attempting to add the city, the country must NOT be added.
How should you complete the code? To answer, drag the appropriate code blocks to the correct locations in the answer area. Each code block may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Select and Place:
You have an Azure SQL Database that contains two tables named Country and City.
You need to insert a country into the Country table and a city into the City table. The solution must meet the following requirements:
✑ If an error occurs while attempting to add the country, the city must NOT be added.
✑ If an error occurs while attempting to add the city, the country must NOT be added.
How should you complete the code? To answer, drag the appropriate code blocks to the correct locations in the answer area. Each code block may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Select and Place:
Correct Answer:
References:
https://msdn.microsoft.com/en-us/library/system.data.sqlclient.sqltransaction(v=vs.110).aspx
References:
https://msdn.microsoft.com/en-us/library/system.data.sqlclient.sqltransaction(v=vs.110).aspx
Question #24
You are developing a library management application that uses the ADO.NET Entity Framework against a SQL Server database.
The application has a method that returns check outs filtered by date.
The Book class is shown below.
You must filter the data on the SQL server before it is returned to the application server.
You need to return books checked out more recently than the entered date.
Which code segment should you use?
A)
B)
C)
D)
The application has a method that returns check outs filtered by date.
The Book class is shown below.
You must filter the data on the SQL server before it is returned to the application server.
You need to return books checked out more recently than the entered date.
Which code segment should you use?
A)
B)
C)
D)
Question #25
HOTSPOT -
You are developing a web application that will store data in an Azure SQL Database.
The application will contain three classes named Vehicle, Car, and SportsCar. Car will inherit the Vehicle class. SportsCar will inherit the Car class.
You plan to create the table structure for the three classes by using mapping strategies in the Entity Framework.
You need to identify how many tables will be created by each mapping strategy.
How many tables should you identify? To answer, select the appropriate options in the answer area.
Hot Area:
You are developing a web application that will store data in an Azure SQL Database.
The application will contain three classes named Vehicle, Car, and SportsCar. Car will inherit the Vehicle class. SportsCar will inherit the Car class.
You plan to create the table structure for the three classes by using mapping strategies in the Entity Framework.
You need to identify how many tables will be created by each mapping strategy.
How many tables should you identify? To answer, select the appropriate options in the answer area.
Hot Area:
Correct Answer:
Box 1: Table-per-type: 3 -
Table per Type is about representing inheritance relationships as relational foreign key associations. Every class/subclass that declares persistent properties"" including abstract classes""has its own table. The table for subclasses contains columns only for each noninherited property (each property declared by the subclass itself) along with a primary key that is also a foreign key of the base class table. This approach is shown in the following figure:
Box 2: Table-per-hierarchy: 1 -
Table-per-hierarchy (TPH) inheritance uses one database table to maintain data for all of the entity types in an inheritance hierarchy.
Box 3: Table-per-concrete class: 2
In Table per Concrete type (aka Table per Concrete class) we use exactly one table for each (nonabstract) class.
Vehicle is an abstract class, while car and sportscar and nonabstract classes.
References:
https://weblogs.asp.net/manavi/inheritance-mapping-strategies-with-entity-framework-code-first-ctp5-part-1-table-per-hierarchy-tph https://msdn.microsoft.com/en-us/library/jj618292(v=vs.113).aspx
Box 1: Table-per-type: 3 -
Table per Type is about representing inheritance relationships as relational foreign key associations. Every class/subclass that declares persistent properties"" including abstract classes""has its own table. The table for subclasses contains columns only for each noninherited property (each property declared by the subclass itself) along with a primary key that is also a foreign key of the base class table. This approach is shown in the following figure:
Box 2: Table-per-hierarchy: 1 -
Table-per-hierarchy (TPH) inheritance uses one database table to maintain data for all of the entity types in an inheritance hierarchy.
Box 3: Table-per-concrete class: 2
In Table per Concrete type (aka Table per Concrete class) we use exactly one table for each (nonabstract) class.
Vehicle is an abstract class, while car and sportscar and nonabstract classes.
References:
https://weblogs.asp.net/manavi/inheritance-mapping-strategies-with-entity-framework-code-first-ctp5-part-1-table-per-hierarchy-tph https://msdn.microsoft.com/en-us/library/jj618292(v=vs.113).aspx
