HP HPE6-A69 Exam Practice Questions (P. 3)

  • Full Access (60 questions)
  • Six months of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #11

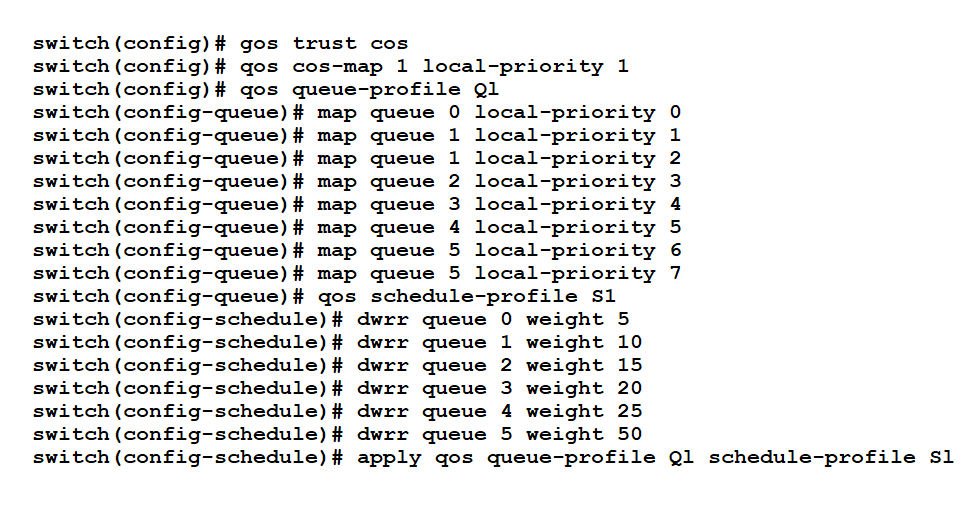

Refer to the exhibit:

Which statement is true?
  1. A
    Q1 and S1 are applied to all interfaces.
  2. B
    Q1 and S1 are applied to all interfaces that do not have a QoS override applied.
  3. C
    No default queues are changed.
  4. D
    To be effective, both Q1 and S1 still need to be applied to interfaces.

Correct Answer:
D

Question #12

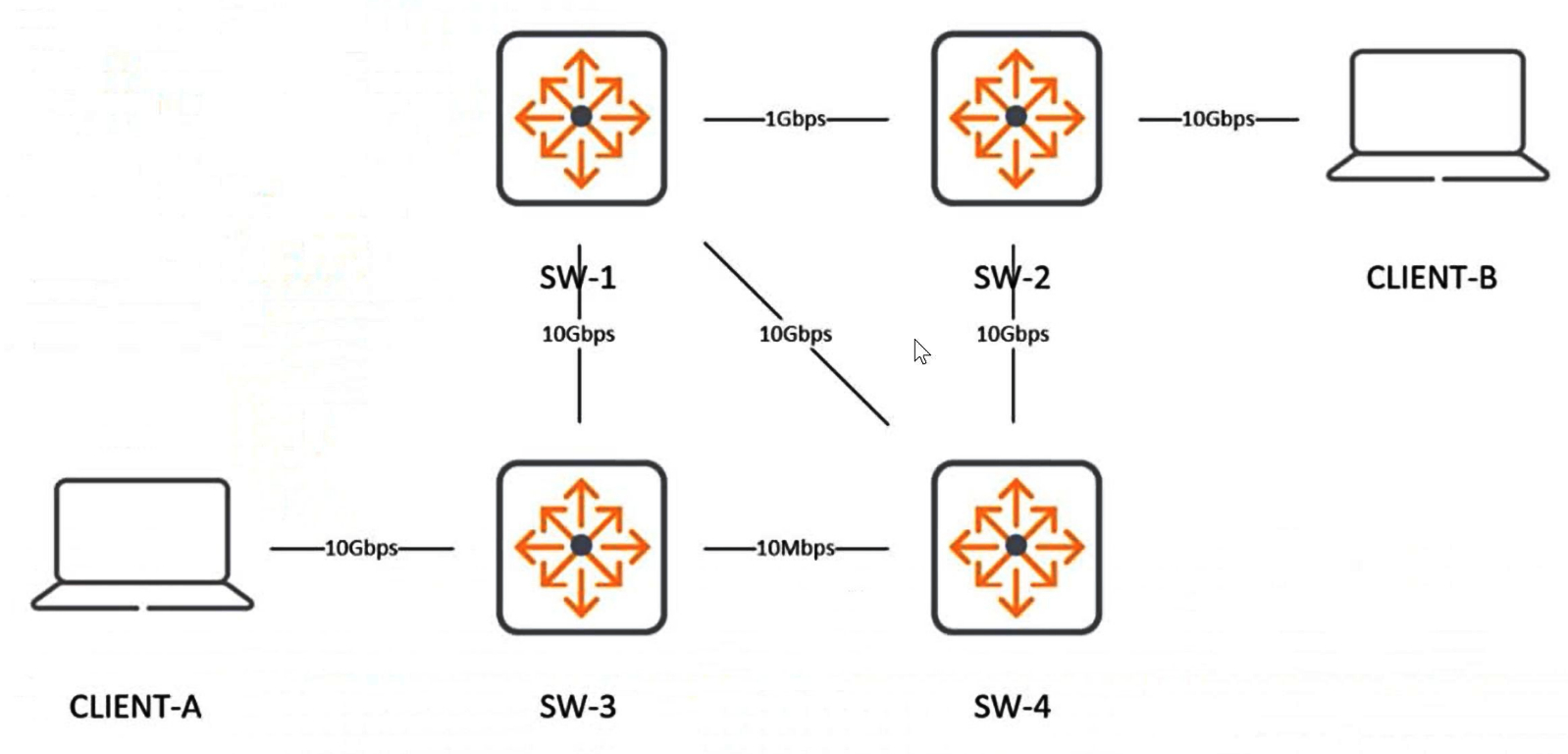

A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

All ports are routed, and ECMP is enabled, with other default parameters for OSPF. What will be the result of traffic sent from CLIENT-A to CLIENT-B?
  1. A
    Traffic will be SW3 -> SW-4 -> SW-2.
  2. B
    Traffic will be SW3 -> SW-1 -> SW-2.
  3. C
    Traffic will be SW3 -> SW-1 -> SW-4 -> SW-2.
  4. D
    Traffic will be SW3 -> SW-1 -> SW-2 & SW3 -> SW-4 -> SW-2.

Correct Answer:
B

Question #13
A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting, it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address.
What are the minimum steps that should be performed to mitigate this condition? (Choose two.)
  1. A
    Implement ARP ACLs to define trusted MAC address to IP bindings.
  2. B
    Implement dhcpv4-snooping.
  3. C
    Enable ‘arp inspection’ on the end-user VLAN.
  4. D
    Enable ‘arp inspection’ on the end-user physical ports.
  5. E
    Enable ‘arp inspection untrusted’ on the end-user physical ports.

Correct Answer:
CE

Question #14

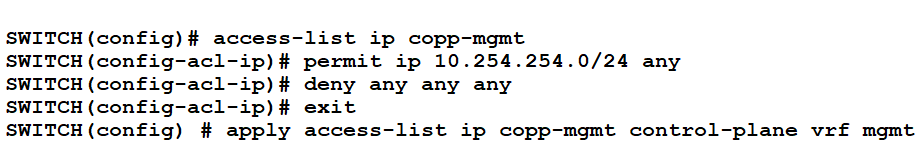

A network administrator has deployed the following (partial) configuration:

What is the effect of this policy?
  1. A
    Only subnet 10.254.254.0/24 is allowed to communicate with CoPP-addresses configured on VRF mgmt.
  2. B
    CoPP traffic is restricted to subnet 10.254.254.0/24
  3. C
    Only ssh traffic to ip-address in VRF mgmt. is restricted to 10.254.254.0/24 network.
  4. D
    Only subnet 10.254.254.0/24 is allowed to communicate with ip-addresses configured on VRF mgmt.

Correct Answer:
B

Question #15
(Scenarios may contain multiple errors, which may or may not impact the solution.)

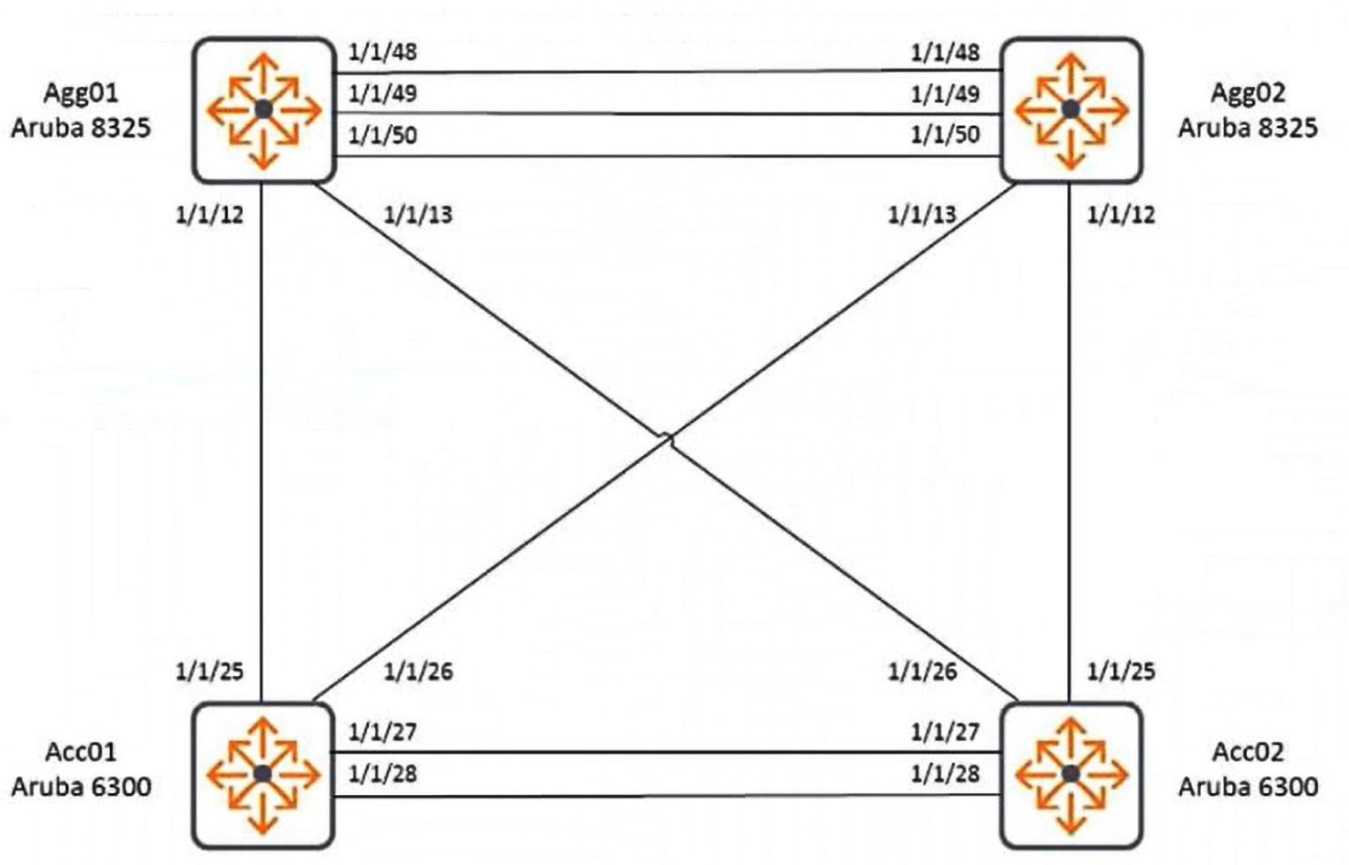

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration. It is required to implement VSX keep-alive at the aggregation layer.

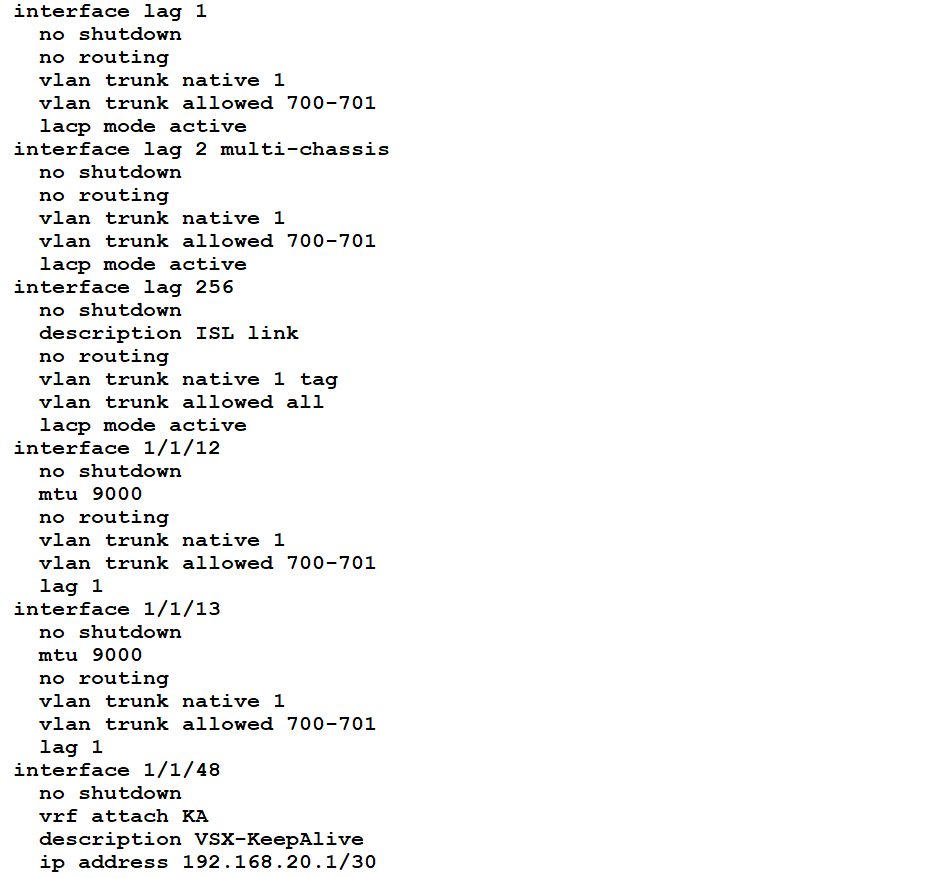

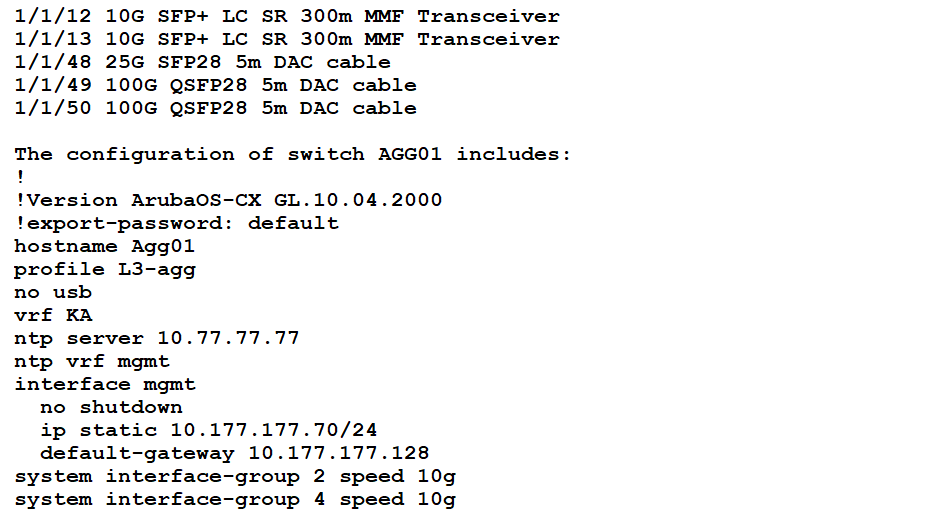

The ports of the ArubaOS-CX 8325 switches used for Agg01 and Agg02 are populated as follows:


VSX keep-alive is not working. Which modification should you make to resolve the error condition?
  1. A
    Modify the system interface-group 4 speed 10g command, change “10g” to “25g”
  2. B
    Edit the vsx-sync command, adding “keep-alive”
  3. C
    Edit interface 1/1/48, changing “vrf attach KA” to “vrf attach ka”
  4. D
    Modify the interface lag 2 command, removing “multi-chassis”

Correct Answer:
D
