Home Cisco® 500-170

Cisco® 500-170 Exam Practice Questions (P. 4)

  • Full Access (50 questions)
  • Six months of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #16

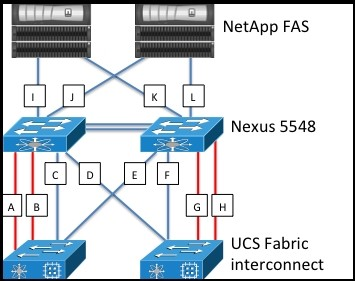

Refer to the exhibit.

Following FlexPod recommended practices, which portchannel configuration is valid for the connectivity shown?
  1. A
    A and B. portchannel 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. portchannel 1I and K. po11 and vpc 11J and L. po12 and vpc 12
  2. B
    A and B. vpc 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. vpc 4I and K. po11 and vpc 11J and L. po12 and vpc 12
  3. C
    A and B. portchannel 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. portchannel 4I and J. po11 and vpc 11K and L. po12 and vpc 12
  4. D
    A and B. portchannel 1C and D. vpc 2E and F. vpc 2G and H. portchannel 4I and J. vpc 11K and L. vpc 11
  5. E
    A and B. po1 and vpc 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. po4 and vpc 4I and J. po11 and vpc 11K and L. po12 and vpc 12

Correct Answer:
A

Question #17
Which hardware device should provide Fibre Channel services in a FlexPod design?
  1. A
    Cisco UCS 6248 Fabric Interconnect
  2. B
    NetApp FAS
  3. C
    Cisco Nexus 3000
  4. D
    Cisco Nexus 5500

Correct Answer:
D

Question #18
When using Virtual Port Channel (vPC) on a Nexus 5500 switch, what protocol is responsible for synchronization of configuration, spanning tree, MAC and VLAN information?
  1. A
    Fibre Channel over Ethernet (FCoE)
  2. B
    Spanning Tree Protocol (STP)
  3. C
    LACP
  4. D
    Cisco Fabric Services over Ethernet (CFSoE)

Correct Answer:
D

Question #19
Under what circumstance can a Cisco Nexus 5548 perform an ISSU (nondisruptive)?
  1. A
    When configured for VPCs
  2. B
    When configured for L3
  3. C
    When an STP-enabled switch is connected downstream
  4. D
    When the STP Bridge Assurance feature is running on a link other than the VPC peer link.

Correct Answer:
A

Question #20

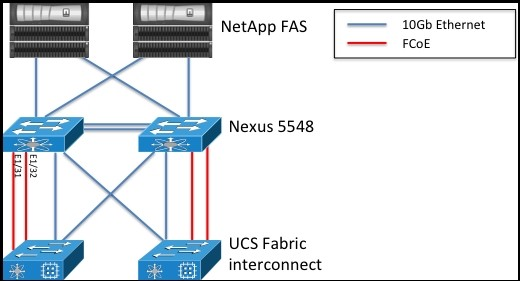

Refer to the exhibit.

What would be the correct configuration for the ports labeled?
  1. A
    vlan 35fcoe vsan 35int eth1/31channel-group 15 mode activeint eth 1/32channel-group 15 mode activeint portchannel15switchport mode trunkswitchport trunk allowed vlan 35spanning- tree port type edge trunkint vfc15bind interface po15switchport trunk allowed vsan 35vsan databasevsan 35 interface vfc15
  2. B
    vlan 35fcoe vsan 45int eth1/31-32channel-group 15 mode activeint po15switchport access vlan 35int vfc15bind interface po15switchport trunk allowed vsan 45vsan databasevsan 45 interface vfc15
  3. C
    int eth1/31channel-group 15 mode activeint eth 1/32channel-group 15 mode activeint po15switchport mode trunkswitchport trunk allowed vsan 45spanning- tree port type edge trunkvsan databasevsan 45 interface po15
  4. D
    vlan 35fcoe vsan 45int eth1/31-32channel-group 15 mode activeint po15switchport mode trunkswitchport trunk allowed vlan 35switchport trunk allowed vsan 45spanning-tree port type edge trunkvsan databasevsan 45 interface po15
  5. E
    int eth1/31-32channel-group 15 mode activeint po15switchport mode access vsan 45vsan databasevsan 45 interface po15

Correct Answer:
A
Topic 3, Storage
