Home Cisco® 300-610

Cisco® 300-610 Exam Practice Questions (P. 5)

  • Full Access (306 questions)
  • One Year of Premium Access
  • Access to one million comments
  • Seamless ChatGPT Integration
  • Ability to download PDF files
  • Anki Flashcard files for revision
  • No Captcha & No AdSense
  • Advanced Exam Configuration
Get Contributor Access
Question #41
What influences the number of ISLs that are required between Cisco MDS Series switches?
  1. A
    FCoE protocol
  2. B
    type of storage
  3. C
    end-to-end oversubscription ratio
  4. D
    N Port virtualization

Correct Answer:
C
Reference:
https://www.cisco.com/c/en/us/products/collateral/storage-networking/mds-9700-series-multilayer-directors/white-paper-c11-729697.html

Question #42
Which type fields can an engineer use to identify an iSCSI participant? (Choose two.)
  1. A
    type
  2. B
    preshared key
  3. C
    port number
  4. D
    identifying tag
  5. E
    hostname

Correct Answer:
CE
Reference:
https://en.wikipedia.org/wiki/ISCSI

Question #43

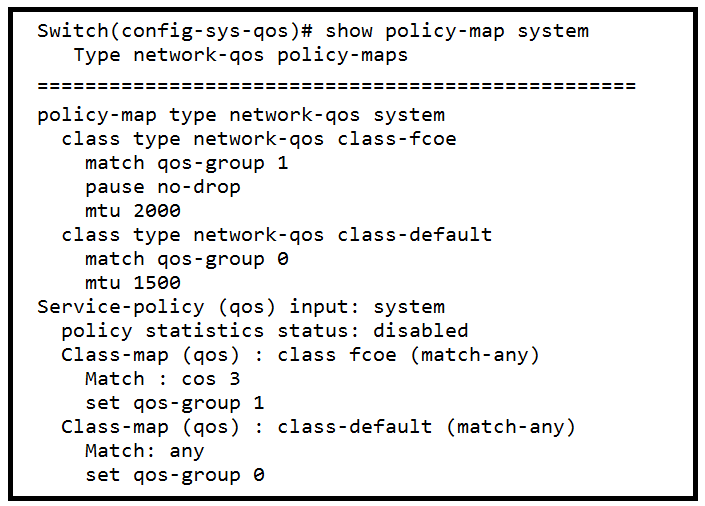

Refer to the exhibit.

The FCoE packets fail to be forwarded through the switch. What is the minimum MTU QoS requirement for the FCoE to work?
  1. A
    9000 bytes
  2. B
    2000 bytes
  3. C
    2158 bytes
  4. D
    2240 bytes

Correct Answer:
B

Question #44
Which Ethernet to Cisco Fabric Interconnect connectivity configuration is supported when FCoE is implemented?
  1. A
    VSS that has unified uplinks
  2. B
    Ethernet and unified ports on the same port channel
  3. C
    vPC that has unified uplinks
  4. D
    cross-connections with pinning

Correct Answer:
C
Reference:
https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-manager/116188-configure-fcoe-00.html#anc11

Question #45
Which two configuration methods can be used to deploy QoS to Cisco MDS Series switches? (Choose two.)
  1. A
    zone-based QoS
  2. B
    multiple QoS policies that match individual devices
  3. C
    VSAN-based QoS
  4. D
    FCoE VLAN-based QoS
  5. E
    multiple QoS policies that match multiple devices

Correct Answer:
AC
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/7_3/configuration/qos/cisco_mds9000_qos_config_guide/ configuring_qos.html

Question #46
An engineer is designing a data center that uses FCIP. How is QoS configured in this environment?
  1. A
    A separate DSCP value and CoPP must be configured for all FCIP traffic and another for all of the FCIP in the data connection.
  2. B
    A separate DSCP value must be configured for all FCIP VSAN traffic.
  3. C
    A separate DSCP value and priority queuing must be configured for all FCIP traffic.
  4. D
    Two separate DSCP values must be configured, one of all of the FCIP frames in the control TCP connection and another for all of the FCIP frames in the data connection.

Correct Answer:
D
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_0/configuration/guides/ipsvc/nxos/ipsvc/cfcip.html

Question #47
Which two methods mitigate congestion in a SAN network? (Choose two.)
  1. A
    Configure ER_RDY to allow splitting of each ISL between switches into separate virtual links.
  2. B
    Use the port-monitor command to detect slow drain devices.
  3. C
    Configure the port channel to enable individual buffer-to-buffer credits.
  4. D
    Configure the port monitor to allow categorization of a specific device as slow.
  5. E
    Configure the flow control for the FC to use R_RDY.

Correct Answer:
BD
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/interfaces/cisco_mds9000_interfaces_config_guide_8x/ congestion_avoidance_isolation.html

Question #48

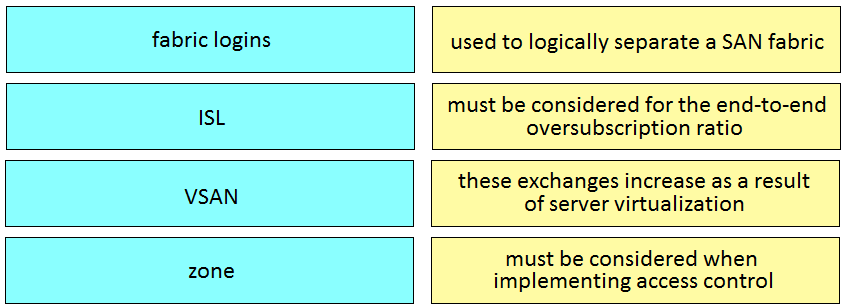

DRAG DROP -
Drag and drop the SAN components from the left onto the correct design considerations on the right.
Select and Place:

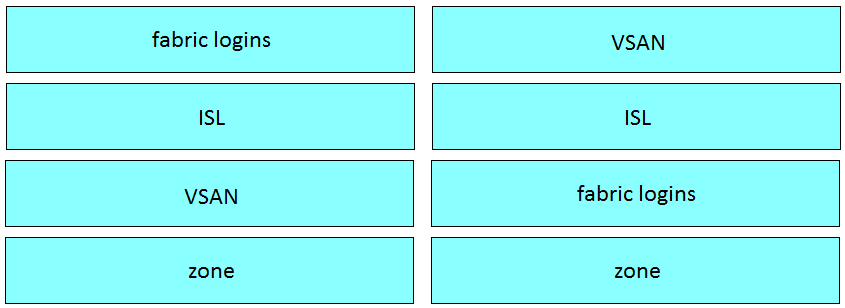

Correct Answer:

Question #49
Which two automation requirements can be met by using Puppet? (Choose two.)
  1. A
    Push configuration updates immediately to servers.
  2. B
    Enable clients to pull changes to configuration files.
  3. C
    Enable clients to pull changes without installing an agent.
  4. D
    Provide support for writing new modules in Python.
  5. E
    Enable one-off infrastructure changes to be performed manually.

Correct Answer:
AB
Reference:
https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-c-series-rack-servers/whitepaper_c11-740103.pdf

Question #50
Which orchestration tool should be used for the management and analytics of servers across multiple sites?
  1. A
    Cisco Intersight
  2. B
    Cisco Nexus Fabric Manager
  3. C
    Cisco UCS Manager
  4. D
    Cisco Data Center Network Manager

Correct Answer:
A
Reference:
https://www.cisco.com/c/en_in/products/servers-unified-computing/intersight/index.html
