Cisco® 200-601 Exam Practice Questions (P. 1)

Given the CIA triad elements, which ensures first that the data is encrypted and secure, second that the data is trustworthy, and third that the data is accessible by those who need it?

Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?

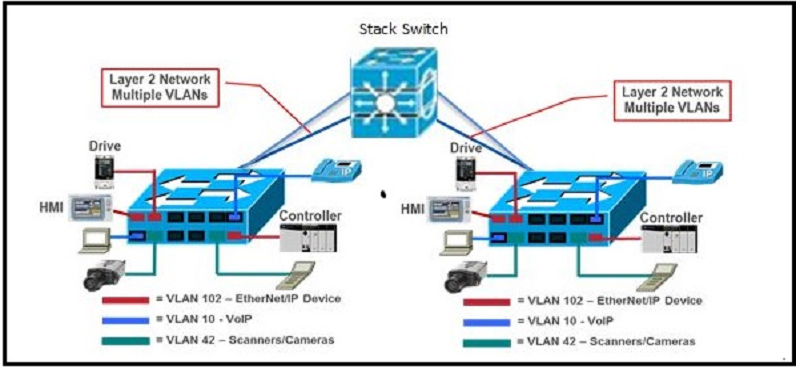

Refer to the exhibit. Which three elements would enable high availability and predictable performance for a motion control application spread across two switches
(with video and I/O traffic)? (Choose three)

You have been tasked to design an Ethernet network capable of Motion control with cycle times not to exceed 1ms. In order to create a more deterministic network, what characteristic/s should you primarily focus on?

Refer to the exhibit.

CIP Implicit messages from I/O#1 are being marked IP DSCP 47 by the endpoint and this marking is trusted by L2SW4. L2SW4 is configured to map DSCP 47 to output queue 1 threshold 1. You have received feedback that some of these messages are not being received. Executing the show mls interface GigabitEthernet statistics command on L2SW4 results in:

L2SW4# show mls interface GigabitEthernet 1/1 statistics
<output omitted>
output queues dropped:
queue: threshold1 threshold2 threshold3 queue 0 0 0 0 queue 1 309232345 450 0 queue 2 300 10 0 queue 3 91 0 0

Repeating this command results in the counters incrementing for queue 1 threshold 1. What are two options for reducing the packet loss on this interface while preserving the end-to-end DSCP marking? (Choose two)
