Question #1
To prevent inter-area routing loops, OSPF does not allow advertising routing information between two non-backbone areas and allows advertising routing information only within an area or between the backbone area and a non-backbone area. Therefore, each ABR must be connected to the backbone area.
  1. A
    TRUE
  2. B
    FALSE

Correct Answer: A ?️

Question #2
Which of the following statements regarding OSPF packets is false?
  1. A
    DD packets contain all LSA information and can be used to periodically synchronize LSOB information between neighbors.
  2. B
    Hello packets are used to discover and maintain OSPF neighbor relationships and also can be used to elect DR and BDR on broadcast and NBMA networks.
  3. C
    Two routers must send Hello packets at the same interval. Otherwise, they cannot establish an OSPF neighbor relationship.
  4. D
    DD packets carry LSA header information to describe link state summary information.

Correct Answer: A ?️

Question #3
Which of the following statements regarding OSPF neighbor relationship and adjacency is true?
  1. A
    Not all neighbors can establish adjacencies.
  2. B
    Neighbor relationships are selected from adjacencies to exchange routing information.
  3. C
    OSPF routers must establish an adjacency before exchanging information.
  4. D
    Adjacencies are maintained using OSPF DD packet

Correct Answer: A ?️

Question #4
Which of the following statements regarding different LSA types is false?
  1. A
    LS Update packets contain complete LSA information.
  2. B
    LS Ack packets contain complete LSA information.
  3. C
    LS Request packets contain only LS Type, LS ID, and Advertising Rooter.
  4. D
    DD packets contain only LSA summary information, including LS Type, LS ID, Advertising Router, and LS Sequence Number.

Correct Answer: B ?️

Question #5
See the network shown in the following figure. Route leaking is configured on R1. In this case, R1 sends a Level-2 LSP to R3 so that R3 can learn routes on the entire network.
  1. A
    TRUE
  2. B
    FALSE

Correct Answer: A ?️

Question #6
Which cost types are supported in IS-IS? (Choose all that apply.)
  1. A
    default
  2. B
    wide
  3. C
    ToS
  4. D
    Narrow

Correct Answer: ABCD ?️

Question #7
Which of the following statements about IS-IS Hello packets are true? (Choose all that apply.)
  1. A
    Level-1 LAN IIH packets do not contain the System ID field.
  2. B
    P2P IIH packets and LAN IIH packets are exactly the same.
  3. C
    P2P IIH packets do not contain the Priority field.
  4. D
    Level-1 LAN IIH packets are sent in multicast mode.

Correct Answer: CD ?️

Question #8
Two Level-1 routers in different areas can establish a neighbor relationship.
  1. A
    TRUE
  2. B
    FALSE

Correct Answer: B ?️

Question #9
Which of the following attributes must be carried in an Update message?
  1. A
    local-Pref
  2. B
    MED
  3. C
    AS_Path
  4. D
    PrefVal

Correct Answer: C ?️

Question #10

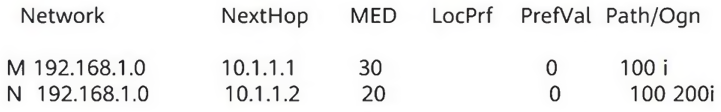

If a router receives two BGP routes carrying the following attributes, which of the following statements is true according to BGP route selection rules?
  1. A
    The optimal route is route N because its MED value is smaller than that of route M.
  2. B
    The optimal route is route N because its AS_Path is longer than that of route M.
  3. C
    The optimal route is route M because its AS_Path is shorter than that of route N.
  4. D
    The optimal route is route M because its MED value is larger than that of route N.

Correct Answer: C ?️
